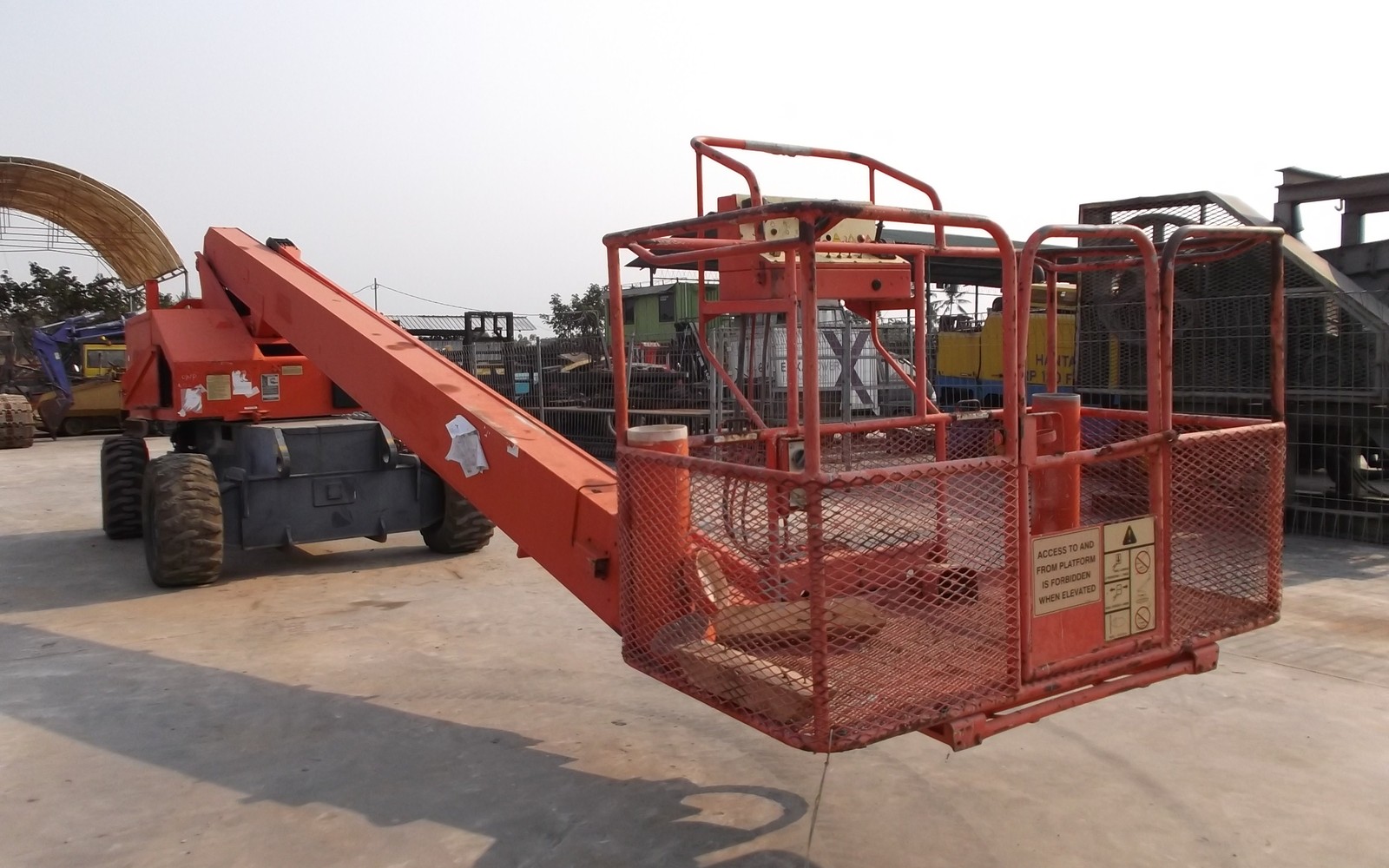

JLG 800AJ Articulating Boom Lift Financing

Eighty feet of platform height with 50 feet of horizontal reach and full up-and-over articulation. The JLG 800AJ is where the articulating boom class starts handling work that shorter knuckle booms cannot reach: six- to eight-story building exterior access, tall industrial vessel maintenance, bridge inspection setups, mid-rise curtain wall installation. The combination of height and horizontal reach at this level puts the 800AJ in a tier where it earns solid day rates and sits comfortably in our core funded range for financing. We fund the JLG boom lineup from the smaller articulating models through the 1250 and 1500 class, and the 800AJ, priced costing on the order of $90k to $130k new, goes through our application-only process with no financials required up to $400,000.

The 800AJ runs on a diesel engine with four-wheel drive and a heavy rough-terrain chassis. At 80 feet the base is carrying significant leverage, and the machine is built accordingly: a rear axle oscillation system, stabilizing axle locks for lift operations, and a chassis designed for the muddy, uneven conditions where 80-foot access work actually happens. Steel erectors, curtain wall installers, painting contractors doing exterior high-rise work, and industrial maintenance crews running platforms against tall structures are the core operators. We fund these buyers regularly and move fast because the job does not wait on the bank. For a comparison to the straight-boom option at similar height, the JLG 600S telescopic shows how the two configurations trade off reach and access geometry.

JLG specs the 800AJ with a platform height of 80 feet and a working height of approximately 86 feet. Horizontal outreach is 50 feet from center, with an up-and-over height of approximately 38 feet. That geometry is what distinguishes this machine from a straight telescopic at the same platform height: the articulating arm can fold upward and over a roofline or parapet, position the platform behind the obstacle, and lower the operator into place without the base of the machine being repositioned. On a complex jobsite with restricted access points, that capability saves hours of repositioning per day.

Platform capacity is 500 pounds, consistent with most machines in the 80-foot class. The dual jib configuration allows the operator to fine-tune the final few feet of positioning after the boom is at rough position, which reduces the number of full-boom repositions on a long exterior face. Overall machine weight is in the range of 32,000 to 34,000 pounds depending on configuration, which puts it firmly in the class that requires ground bearing pressure checks before setup. On soft soil, asphalt in high heat, or any surface with unknown load capacity, the operator needs to assess before lifting.

The diesel engine on the 800AJ typically delivers enough fuel range for a full shift without refueling, and the four-wheel drive with locking oscillating axle handles gradeability up to 40 percent. Tire options include foam-filled on most configurations, which eliminates blowout risk on construction sites with nail-prone ground. These are the details that make the machine practical rather than theoretical on real jobsites, and they are part of why the 800AJ is one of the more popular 80-foot articulating booms in the rental fleet category.

The 800AJ earns at height on a specific set of job types. Steel erection crews doing connection work on six- to eight-story structural steel frames need the up-and-over capability to reach connection points that a straight boom cannot approach from the perimeter. Curtain wall installation on mid-rise commercial buildings is another core use: the panels are set from outside the building face, and the articulating arm lets the crew position precisely at each panel without a full drive-and-reposition cycle. Window cleaning and glazing contractors maintaining tall commercial exteriors run these machines for the same reason. We work with window cleaning and glazing operations that own or lease 80-foot articulating booms as their primary access equipment.

Bridge maintenance and inspection crews are another steady market. Bridge deck inspection requires reaching under the deck from the side, which is exactly what an articulating boom does better than any other access method for mid-height spans. The 800AJ is within the reach class for most highway bridge decks, and the rough-terrain chassis handles the roadside and embankment conditions near bridge abutments.

Rental yards building an 80-foot fleet think carefully about the articulating-to-telescopic ratio. The articulating units command higher day rates on complex access jobs and rent to a slightly different customer base than the straight booms. We fund mixed fleet packages combining the 800AJ with telescopic 80-foot units and with the JLG 1250 and 1500 class for yards building toward full large-boom capability. A fleet financing package across multiple machine types closes faster than separate individual deals and keeps the paperwork to a manageable level.

How much does an 800AJ weigh, and do I need ground preparation?

The 800AJ weighs approximately 32,000 to 34,000 pounds in standard configuration. Ground preparation requirements depend on the surface. Compacted gravel, asphalt in good condition, and solid concrete typically handle the machine without preparation. Soft soil, asphalt in summer heat, or any surface with unknown load capacity warrants a ground bearing pressure check before setup. Outrigger mats or crane mats under the tires add bearing area in soft conditions.

Is the 800AJ the right machine for bridge inspection?

For many mid-height highway bridges, yes. The 800AJ's up-and-over geometry and 80-foot platform height make it effective for deck underside inspection on bridges in the 50- to 75-foot deck height range, depending on the bank or shoulder access geometry. Very tall bridges or those with restricted shoulder access may require a more specialized under-bridge inspection truck. For routine maintenance inspection on standard highway bridges, the 800AJ is a practical and common choice.

What is the difference in day rate between the 800AJ and a straight telescopic at 80 feet?

Articulating booms in the 80-foot class typically command higher day rates than straight telescopics at the same platform height because of the up-and-over access capability and the broader range of applications they handle. The exact rate difference varies by market, but the articulating premium on an 80-foot machine is meaningful on most rental rate cards. We are not a rental pricing consultant, but the premium is real and factors into the return-on-investment calculation when buying.

Can I finance the 800AJ and a scissor lift fleet together as one deal?

Yes. We bundle mixed equipment packages across machine types and size them as a single deal. A boom lift alongside scissors goes through one application and one approval process. As long as the combined package meets our $50,000 floor, we structure it as a fleet deal.

I bought my 800AJ outright three years ago. Can I refinance it to free up cash?

Yes, through a sale-leaseback or cash-out refinance. We appraise the machine at current market value, fund against that value, and you get the cash while the machine stays in your fleet. It is a straightforward way to unlock equity in paid-off iron without selling the asset.
