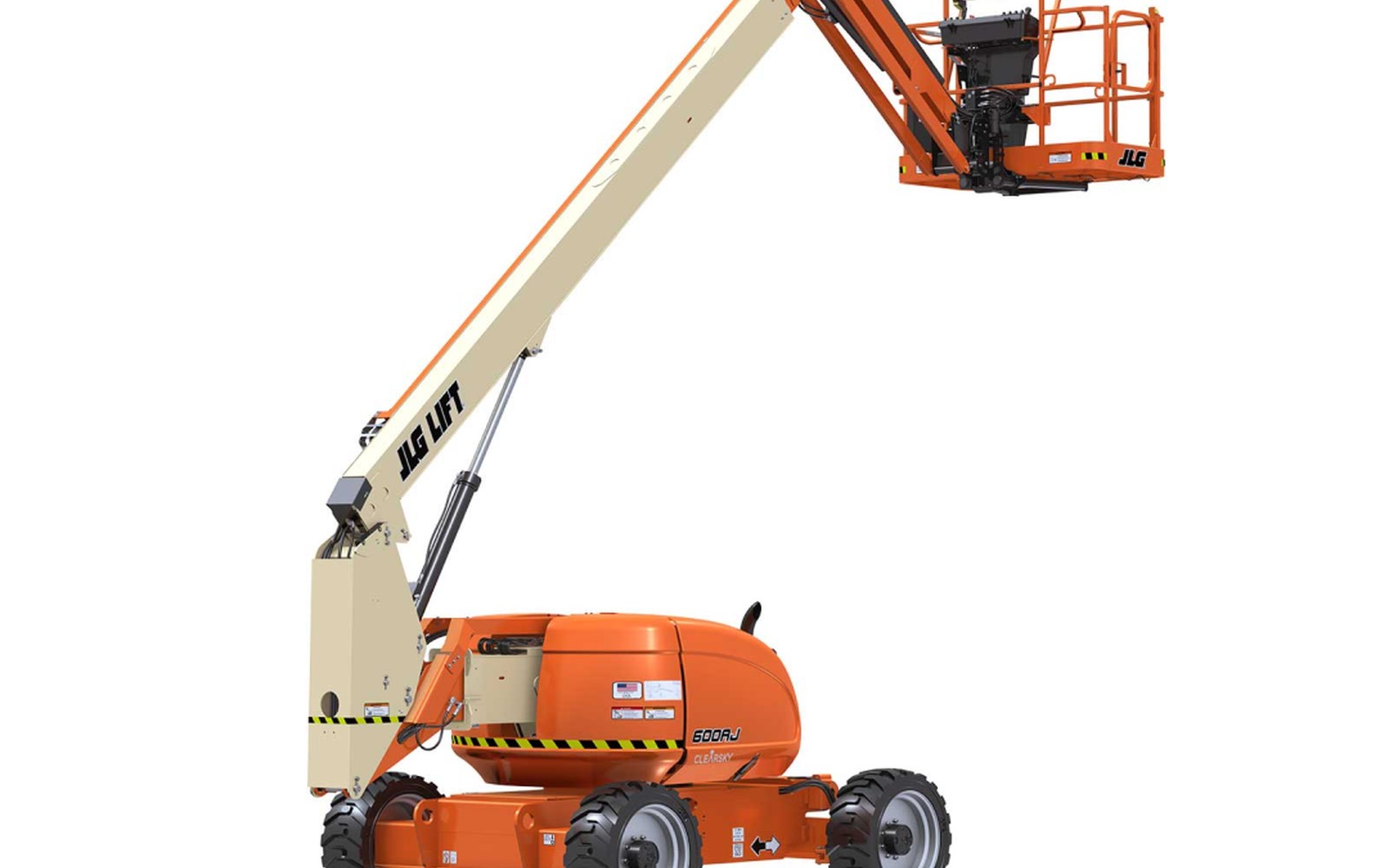

JLG 600AJ Articulating Boom Lift Financing

Sixty feet up and 34 feet of horizontal reach, with the ability to articulate up and over an obstacle and come back down the far side. The JLG 600AJ is the machine crews choose when the telescopic gets blocked: the parapet they need to clear, the equipment pad they need to reach above, the steel they need to come in from the inside of. Straight booms get you height; articulating booms get you access. The 600AJ does both because the knuckle joint at the jib lets the arm fold and reach where a straight boom would hit something first. We fund articulating boom lifts including the 600AJ new or used, and for operators already running a JLG yard, we bundle the boom deal with the scissor fleet so it all closes on one ticket.

Rough-terrain four-wheel drive is standard on the 600AJ, which is the right call for a 60-foot machine. At that platform height, the base needs to be solidly planted, and the 4WD drive with oscillating axle handles the uneven ground and muddy jobsite conditions that steel erectors, roofing contractors, and general contractors encounter. This is not a warehouse or interior machine; it is a site machine, and the chassis is spec'd for that environment. If the majority of work is interior at lower heights, a scissor lift is more economical and we fund those too.

The JLG 600AJ reaches a platform height of 60 feet, with a working height of approximately 66 feet. Horizontal reach is 34 feet from center with the platform at full extension, which is the number that matters for clearing a parapet and reaching behind it, or positioning above equipment on a rooftop without needing to position the machine directly over the equipment pad. Up-and-over clearance is approximately 24 feet, meaning the machine can reach over a 24-foot wall or obstacle and position the platform on the far side. That geometry is what makes an articulating boom the right tool when a telescopic would not fit the access problem.

Platform capacity on the 600AJ is 500 pounds, enough for two workers with hand tools, which is the standard access work load. The machine runs on a diesel engine with a four-wheel drive chassis, oscillating rear axle, and foam-filled tires as standard on most configurations. Gradeability is rated at 40 percent, which handles most construction sites and some rough grades. Tail swing is a critical number on any articulating boom because the counterweight swings behind the machine during rotation; the 600AJ has a rear swing radius of approximately 6 feet 4 inches, which needs clearance at the set position.

Overall machine weight is in the range of 18,000 pounds depending on options. That weight demands attention to ground bearing pressure, particularly on asphalt lots in summer heat and on any surface that is not compacted to a high standard. Most boom lift operators have a feel for where they can and cannot safely set the machine, and the 600AJ's weight is in the same class as most 60-foot rough-terrain booms. Outriggers are not standard on the 600AJ; the machine relies on its axle and tire configuration for stability rather than outrigger spread.

Steel erectors and ironworkers running commercial and industrial work use the 600AJ for bolt-up at the connection points a straight boom cannot reach from a straight line. Electrical contractors doing exterior service work on mid-rise buildings and light industrial facilities spec the 600AJ for the up-and-over access to rooftop conduit and equipment. Roofing contractors use it for steep-slope access and for working above parapet walls on flat-roof commercial buildings. Sign installation crews run it for large-format sign work on commercial buildings where the sign is set back from the accessible edge.

Rental yards building a fleet of 60-foot booms typically mix articulating and telescopic configurations because job calls come in for both, often from the same contractor depending on the site. We fund aerial lift fleet packages that include both types as a single deal, which is how most yard operators prefer to build. The alternative is two applications, two underwriting processes, two closings, and a month instead of two weeks. We do not operate that way.

Painting contractors doing exterior high-rise and mid-rise work rely heavily on the 600AJ's up-and-over capability. Getting the platform to the exterior face of a building above the podium or setback without repositioning the machine for every setup is a productivity multiplier. We work with painting and coatings contractors who buy or lease these machines to support multi-site exterior repaint programs, and the deal typically funds in time to get the machine on site before the project mobilizes.

How is the 600AJ different from the 600S telescopic model?

The 600AJ is an articulating boom with a knuckle joint at the jib, allowing up-and-over reach and access around obstacles. The 600S is a straight telescopic boom with longer horizontal reach in a straight line but no up-and-over capability. Articulating is the right call when access geometry is complex; telescopic is the right call when you need maximum horizontal reach without obstacles in the way.

Can I get the 600AJ funded if I only have one year in business?

One year is on the lighter side for time-in-business requirements, but it is not an automatic decline. We look at what the bank statements show during that year. If revenue is consistent and the payment fits, we can often structure a deal with a larger down payment or a personal guarantee. Tell us the full picture and we work around the situation.

What is a reasonable number of hours on a used 600AJ to consider buying?

JLG articulating booms are built for high-hour fleet use and often run 3,000 to 5,000+ hours in rental service. A machine with 2,000 to 3,500 hours in good repair is typically a reasonable used buy. Above 4,000 hours we start asking about recent maintenance records, cylinder seals, and upper assembly condition. Hours alone are not the whole story; maintenance matters as much.

My current 600AJ is financed and the rate is high. Can I refinance it?

Yes. We take out the existing note, restructure the terms, and if the machine has equity above the payoff, we can run a cash-out and put the spread to work as operating capital. Bring us the current payoff, the approximate market value, and we will show you what the refinance looks like.

Do I need outriggers on the 600AJ?

The 600AJ does not use outriggers for stability in the standard configuration. It uses its four-wheel drive chassis with oscillating axle for site stability. This means ground conditions matter more than on an outrigger-deployed machine. Set the machine on compacted ground, avoid soft or unstable surfaces, and follow the load chart for your configuration.
